1CH HD-SDI Bi-directional Tx & Rx with Bi-directional 10/100 Ethernet (RJ45) 20km ST/PC

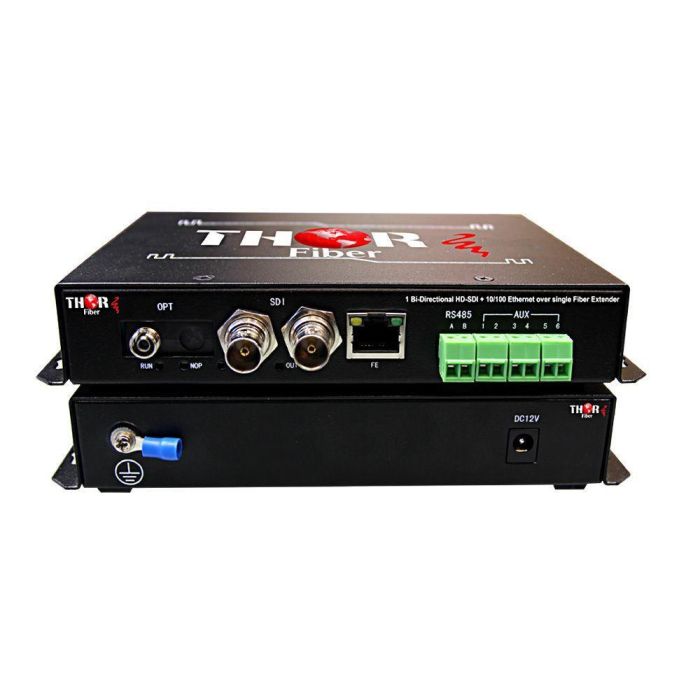

1CH HD-SDI Bi-directional Tx & Rx with Bi-directional 10/100 Ethernet (RJ45) 20km ST/PC Thor Compact F-M1SDI-TR-ET is a high performance, reliable, bi-directional one channel SD/HD-SDI video optical transceiver, which performs in real-time, loss-free, high-quality SD/HD-SDI transmission (audio embedded) over any single mode fiber optical line. Besides the unit transmitting a bi-directional SDI signal, the F-1MSDI-TR-ET provides a bi-directional Ethernet interface sharing 100M bandwidth, unidirectional RS485 data channel for control, and optional(ask your sales rep for cost) audio/contact closure/RS422/RS232 data transmission, which is widely used in live TV broadcast, high-definition video conferencing, high-definition video monitoring and intelligent transportation systems etc. Features: Bi- Directional SDI signal over a single fiber Bi-Directional 10/100 Etherent (RJ45) Unidirectional RR-485 Control data Analog Audio ( optional ) by order only (ask associate for additional cost)  Specifications: Compliant with SMPTE-292M HD-SDI and SMPTE-259M SD-SDI standard, supports 1.485Gb/s and 270Mb/s One SD/HD-SDI input (BNC), one SD/ HD-SDI output(BNC) and one fast Ethernet interface Supports 1080P@30,25,24, 29.97, 1080I@60,50,59.94, 720P@60,50,30,25,24, 9.94, 29.97, 23.98 and 625i/525i format, when input is 1080P@29.97, 1080I@59.94, 720P@59.94, 29.97, 23.98, the output is 1080P@30, 1080I@60, 720P@60,30, 24 respectively Equipped with integrated cable equalizer Embedded ESD and surge protection circuit to prevent damage from static and thunder With NOP (No optical signal) alarm indications, output status indicator and input lock indicator With APC circuit to perform at a stable optical power   Product Documents & Videos Spec Sheet Click to Download SDI Over Fiber Selection Guide Click to Download
