PPC 10-0010FT TD8-P-10.0.6.0-PE-ORG Miniflex Optical Fiber TuffDuct 3280 FT

Condition: New

Product Overview:

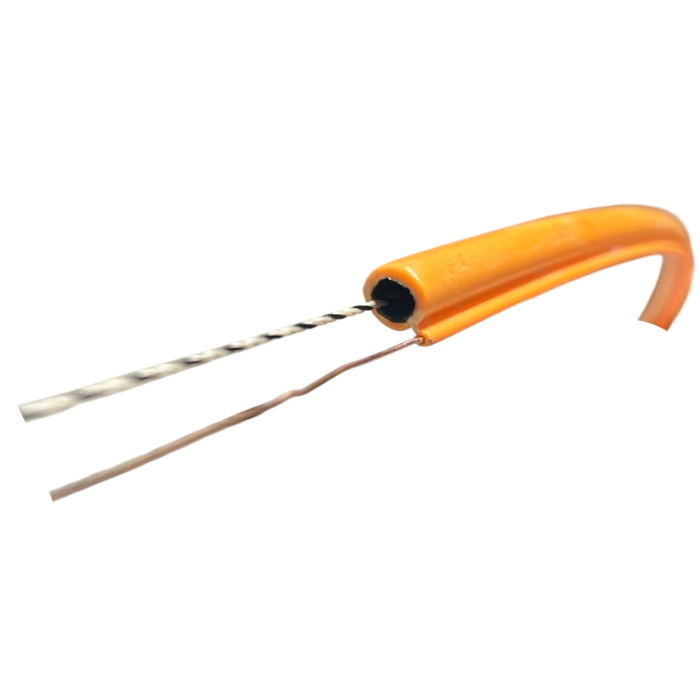

The PPC 10-0010FT TuffDuct® Direct Buried Microduct is an ultra-tough 10 mm microduct designed for routing fiber optic cables in underground deployments. Constructed from a specialized HDPE polymer, TuffDuct is engineered for direct burial applications while delivering exceptional crush resistance and durability. The microduct features an ultra-low-friction, low-static DVC lining that improves fiber installation by allowing cables to be easily pulled, pushed, or blown through the duct. Designed for FTTH/FTTX networks and telecommunications infrastructure, the duct also includes a toneable copper-clad steel wire for locating purposes and a factory-installed pull cord to simplify installation. Its compact outer diameter makes it well-suited for slot trenching methods and other modern fiber deployment techniques.

Features:

Ultra-Tough Construction: High crush resistance HDPE microduct designed for direct burial fiber installations

Low-Friction DVC Lining: Internal lining reduces friction and static, improving fiber pulling, pushing, and blowing performance

Toneable Design: Includes 0.75 mm (21 gauge) copper-clad steel tone wire for underground cable location

Installation Ready: Compact OD ideal for slot trenching and includes a pull cord for easier cable installation

Specifications:

*Model: 10-0010FT
*Product Family: TuffDuct® Direct Buried Microduct
*Outer Diameter: 10 mm
*Inner Diameter: 6 mm
*Crush Resistance: 2000 N
*Tension Rating: 800 N
*Minimum Bend Radius: 20x OD
*Operating Temperature: -40°C to 70°C (-40°F to 158°F)
*Installation Temperature: -10°C to 60°C (14°F to 140°F)
*Tone Wire: Yes (0.75 mm copper clad steel)
*Color: Orange
*Length: 3280 ft (1000 m)
