PPC 10-0929 MD-P-10.0-6.0-PE-WHT Miniflex Outdoor White Microduct 3280 FT

Condition: New

Product Overview:

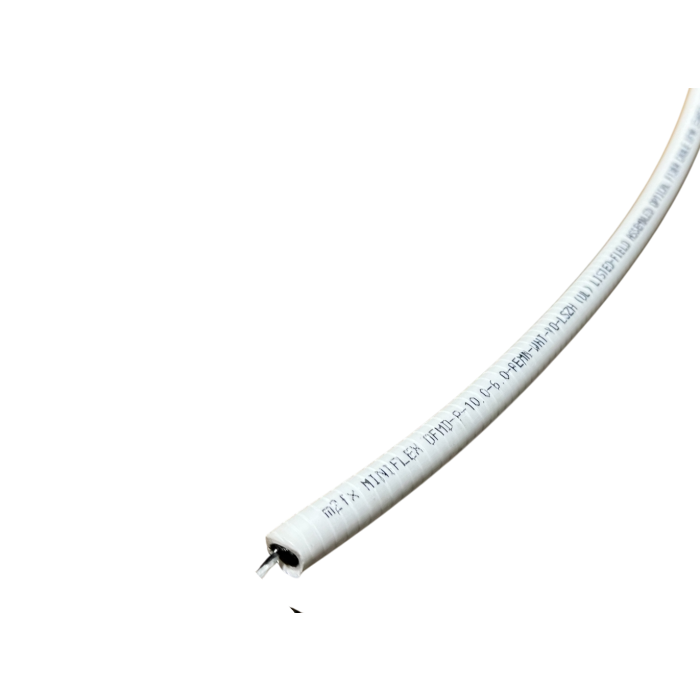

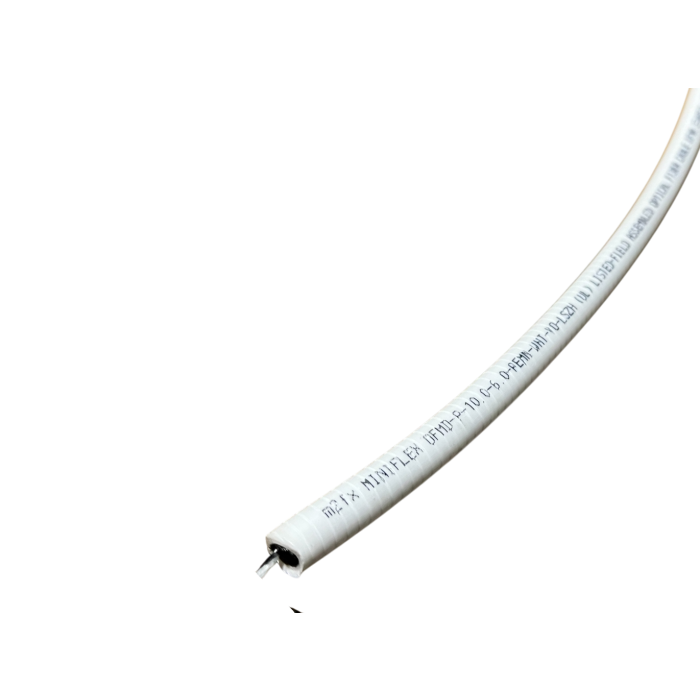

The PPC 10-0929 Miniflex® Field-Assembled Riser Microduct is designed for routing fiber optic cables within indoor building riser environments. Built with PPC’s Miniflex technology, this 10 mm outer diameter microduct features a durable, flame-retardant construction and a specialized low-friction DVC lining that allows fiber to be easily pulled, blown, or pushed through the duct during installation. The riser-rated design conforms to UL 1651 OFNR requirements for field-assembled optical fiber cable systems, making it ideal for FTTH/FTTX deployments, telecom infrastructure, and data network installations. Its rugged design offers excellent crush resistance and installation flexibility while maintaining compatibility with standard push-fit connectors and microduct fiber systems. MiniFlexFieldAssembled-Rise…

Features:

Low-Friction DVC Lining: Internal lining reduces friction and static to improve fiber pulling, blowing, and pushing performance

Riser Rated Construction: Designed to meet UL 1651 OFNR standards for field-assembled fiber cable installations in building risers

High Crush Resistance: Ultra-tough microduct construction provides strong protection for fiber in demanding installations

Wide Compatibility: Works with QuikPush® cable assemblies, standard push-fit connectors, and common microduct fiber cables

Specifications:

*Model: 10-0929
*Product Code: MD-P-10.0-6.0-PE
*Outer Diameter: 10 mm
*Inner Diameter: 6 m
*Crush Resistance: 725 N
*Tension Rating: 350 N
*Nominal Weight: 39.6 kg/km
*Operating Temperature: -40°C to 70°C (-40°F to 158°F)
*Installation Temperature: -10°C to 60°C (14°F to 140°F)
*Length: 3280 ft (1000 m)
*Riser Rated, Low Smoke Zero Halogen (LSZH) Material
