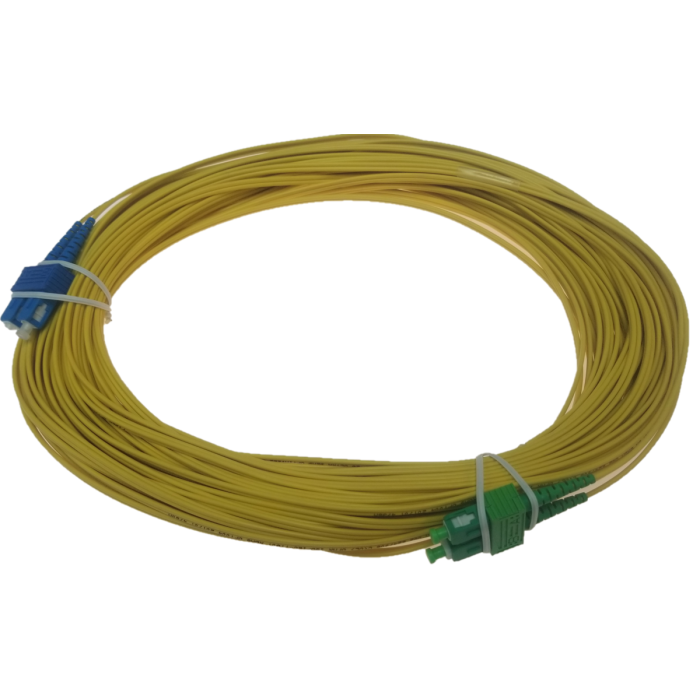

30m OS2 SC/APC-SC/UPC Duplex Singlemode 9/125 Fiber Patch Cable

Condition: New

Product Description: SC (APC)-SC (UPC) Yellow Singlemode Duplex Corning optical fiber with ceramic SC Angle Polish Contact (APC) to SC Ultra Physical Contact (UPC). Zipcord Duplex fiber is PVC with 9/125 singlemode core/cladding. The fiber is 3.0 mil thick. Each cable is individually bagged with test results.

Features:

• Fiber Optic Cable: Singlemode 9/125µm

• Termination: SC to SC

• Connector 1: SC Duplex, 2.5mm, APC Polish

• Connector 2: SC Duplex, 2.5mm, UPC Polish

• Max Connector Loss: 0.50 dB

• Typical Connector Loss: 0.30 dB

• Typical Return Loss: -55 dB

• Optical Mode Type: OS2 (9/125 Singlemode)

• Core/Cladding: 9/125µm

• Core Material: Corning Optical Fiber

• Strand Count: 2 Fiber Strands

• Jacket Color: Yellow

• Jacket OD: 3.0mm

• UL Rating: OFNR

• Compliance: ROHS Compliant

• Quality Control: ANSI/TIA/EIA-455-171-A-2001

• Warranty: Lifetime

• Storage Temperature: -40°C to +70°C

• Operating Temperature: -20°C to +70°C
