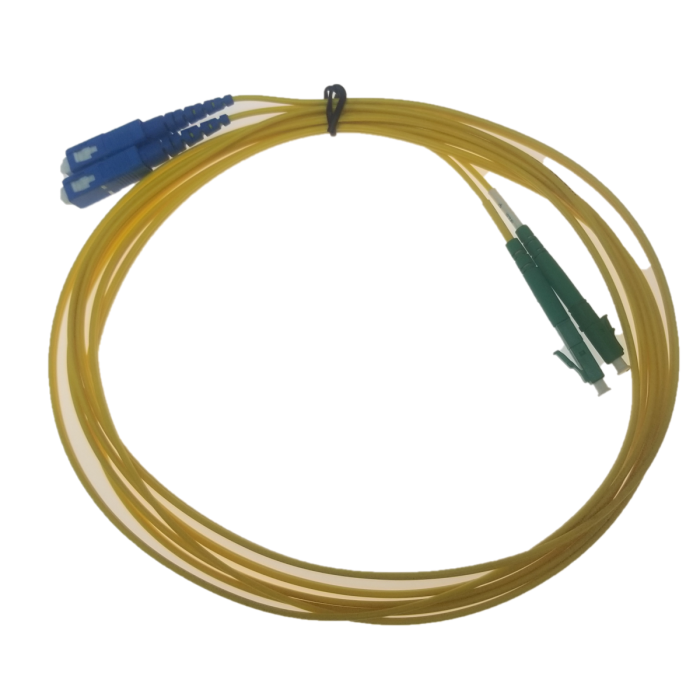

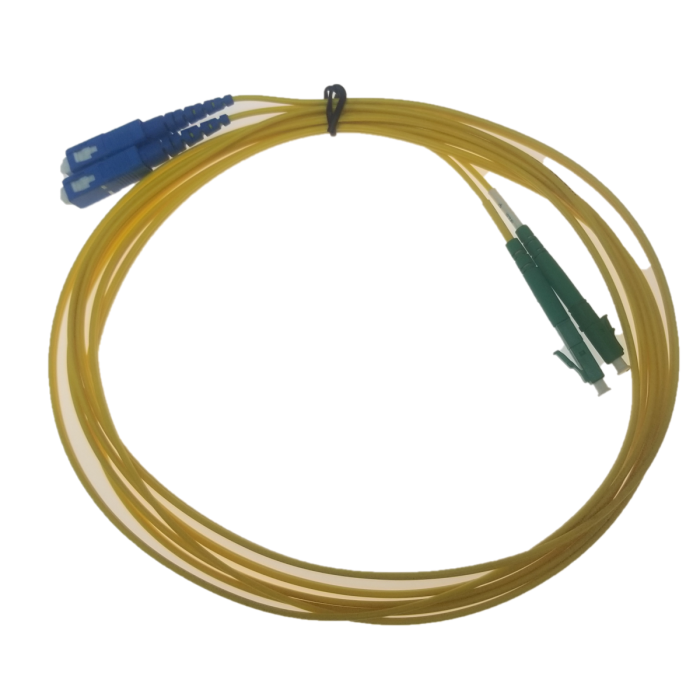

3M SC/UPC-LC/APC Singlemode Duplex OFNR 2.0mm Fiber Optic Patch Cable
Condition: New
Product Description: This fiber optic cable is an ideal choice for connecting patch panels and network devices that require SC to LC style connectors and 9/125 Single mode cabling. It boasts 100% testing and includes a detailed test report with each cable, ensuring top-notch quality and performance. The cable features 1/2 markers for easy identification of the TX and RX connectors on both ends of the assembly. With SC-LC Singlemode connectors and SC/UPC-LC-APC polishing, it offers excellent return loss with A: 55dB. Its insertion loss is a minimal 0.30 dB, thanks to the ceramic (zirconia) ferrule material with diameters of 1.25 mm and 2.5 mm. The duplex body type, nominal diameter core of 9/125 μm, and OFNR jacket material ensure reliability across various networking applications. Plus, it operates efficiently in temperatures ranging from -20°C to +70°C, all within a slim 2.0mm cable diameter.
Features:
Used to connect patch panels and/or network devices that utilize SC to LC style connectors and require 9/125 Single mode cabling
100% tested
Test report included in each cable
1/2 Markers easily identify the TX and RX connector on each end of the assembly
Condition: New
Product Description: This fiber optic cable is an ideal choice for connecting patch panels and network devices that require SC to LC style connectors and 9/125 Single mode cabling. It boasts 100% testing and includes a detailed test report with each cable, ensuring top-notch quality and performance. The cable features 1/2 markers for easy identification of the TX and RX connectors on both ends of the assembly. With SC-LC Singlemode connectors and SC/UPC-LC-APC polishing, it offers excellent return loss with A: 55dB. Its insertion loss is a minimal 0.30 dB, thanks to the ceramic (zirconia) ferrule material with diameters of 1.25 mm and 2.5 mm. The duplex body type, nominal diameter core of 9/125 μm, and OFNR jacket material ensure reliability across various networking applications. Plus, it operates efficiently in temperatures ranging from -20°C to +70°C, all within a slim 2.0mm cable diameter.
Features:
Used to connect patch panels and/or network devices that utilize SC to LC style connectors and require 9/125 Single mode cabling
100% tested
Test report included in each cable
1/2 Markers easily identify the TX and RX connector on each end of the assembly
