Antronix CMC2002F 2-Way Splitter
Condition: New

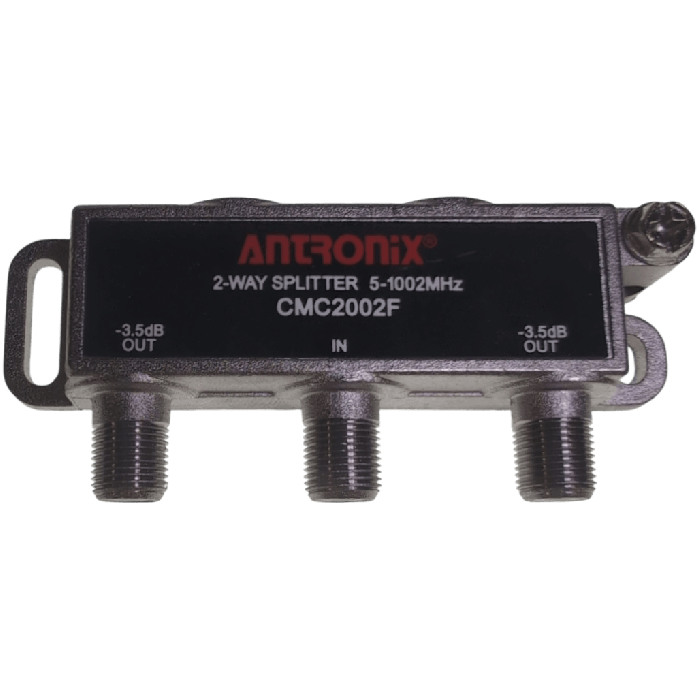

Product Overview: The Antronix CMC2002F (or CMC2002H) is a high-performance 2-way coaxial splitter engineered for modern multimedia broadband networks. Covering a wide frequency range of 5–1002 MHz, it features low insertion loss (~3.2 dB) and excellent return-band isolation, making it ideal for cable TV, data, and MoCA applications. Built with surge-hardened, zinc-alloy die-cast housing and Eclipse Contact Technology F-ports, this splitter is reliable, durable, and designed for long-term field performance.
Features:
5 – 1002 MHz bandwidth with low flat-top insertion loss (~3.3–3.7 dB)
6 kV ring-wave surge protection per IEEE C62.41 for robust line protection
Eclipse Contact Technology F‑ports with capacitively coupled design for low intermodulation and DC isolation
Die-cast zinc housing & 15 psi sealed F‑ports, plus integrated mounting and ground tabs for durability and easy installation
Condition: New
Product Overview: The Antronix CMC2002F (or CMC2002H) is a high-performance 2-way coaxial splitter engineered for modern multimedia broadband networks. Covering a wide frequency range of 5–1002 MHz, it features low insertion loss (~3.2 dB) and excellent return-band isolation, making it ideal for cable TV, data, and MoCA applications. Built with surge-hardened, zinc-alloy die-cast housing and Eclipse Contact Technology F-ports, this splitter is reliable, durable, and designed for long-term field performance.
Features:
5 – 1002 MHz bandwidth with low flat-top insertion loss (~3.3–3.7 dB)
6 kV ring-wave surge protection per IEEE C62.41 for robust line protection
Eclipse Contact Technology F‑ports with capacitively coupled design for low intermodulation and DC isolation
Die-cast zinc housing & 15 psi sealed F‑ports, plus integrated mounting and ground tabs for durability and easy installation
