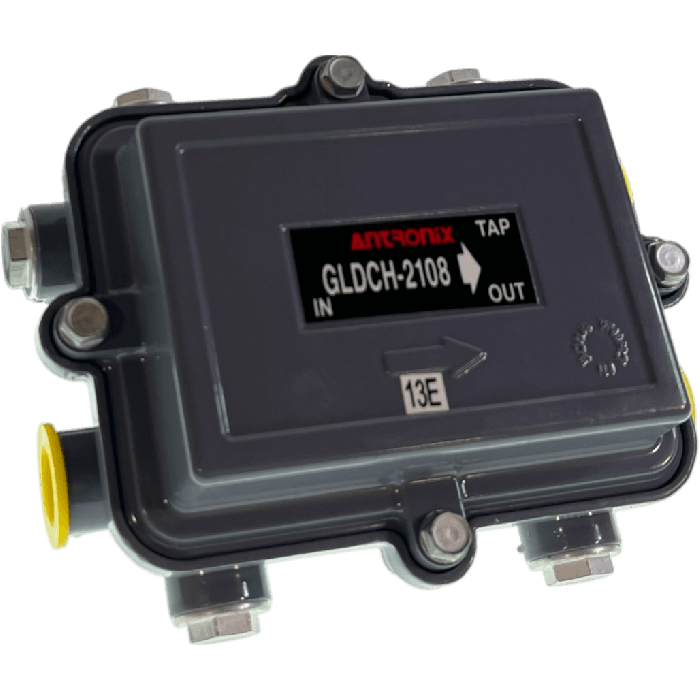

Antronix GLDCH-2108 8db Directional Coupler
Condition: New
Product Overview: The Antronix MGDCH‑2108F (8 dB) directional coupler is part of the Milenium 1 GHz line‑passive family built for broadband HFC networks. It offers an 8 dB tap‑off from the main feed, supports wide‑bandwidth (up to ~1.2 GHz) operations, and is constructed with rugged housing and high surge/EMI tolerance, making it suitable for demanding installations and future‑proofing network upgrades.
Features
Coupling value: 8 dB tap (5‑750 MHz and up through 1000 MHz) with typical tolerance ±1.0 dB.
Supports up to 1 GHz bandwidth in the Milenium series.
Surge Protection & Robustness: Each port is rated to withstand 6 kV combination‑wave surge per IEEE C62.41 Category B3.
Screening/shielding effectiveness: ≥ 105 dB (min) per
Condition: New
Product Overview: The Antronix MGDCH‑2108F (8 dB) directional coupler is part of the Milenium 1 GHz line‑passive family built for broadband HFC networks. It offers an 8 dB tap‑off from the main feed, supports wide‑bandwidth (up to ~1.2 GHz) operations, and is constructed with rugged housing and high surge/EMI tolerance, making it suitable for demanding installations and future‑proofing network upgrades.
Features
Coupling value: 8 dB tap (5‑750 MHz and up through 1000 MHz) with typical tolerance ±1.0 dB.
Supports up to 1 GHz bandwidth in the Milenium series.
Surge Protection & Robustness: Each port is rated to withstand 6 kV combination‑wave surge per IEEE C62.41 Category B3.
Screening/shielding effectiveness: ≥ 105 dB (min) per
