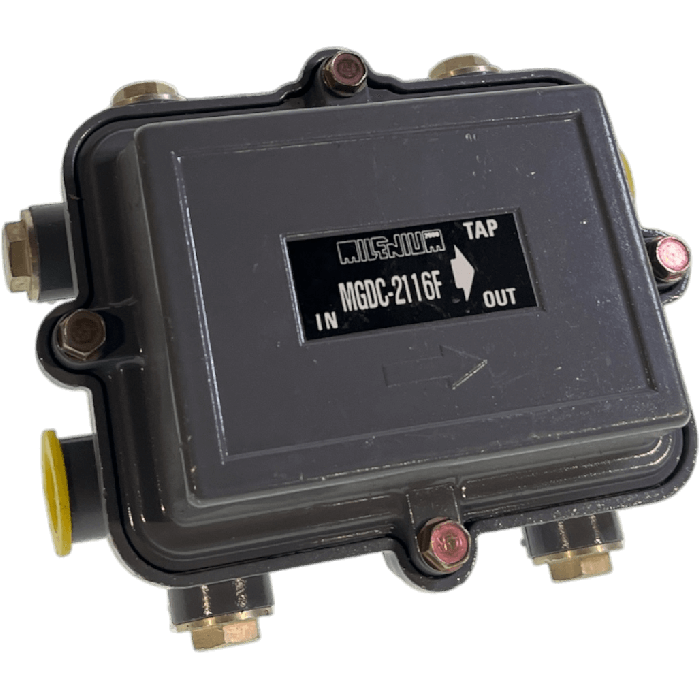

Antronix MGDC-2116 16db Milenium Directional Coupler
Condition: New
Product Overview: The Antronix Milenium 16 dB directional coupler (model MGDCH‑2116F) is designed for high‑performance headend or trunk‑line applications in broadband HFC/CATV networks. Engineered for up to 1.2 GHz bandwidth, it is built to handle high‑current feed-through, provide excellent surge protection, and deliver minimal signal distortion when extracting a 16 dB tap from the main feed. Its robustness, durable housing, and plug‑in signal‑conditioning capability make it well suited for demanding network upgrades and future‑proofing architectures.
Features:
16 dB tap value, ensuring a balanced portion of the signal is extracted.
Frequency range (tap loss specs): 5‑750 MHz: 16 ±1 dB; 750‑1000 MHz: 16.4 ±1.2 dB; 1000‑1218 MHz: 16.6 ±1.5 dB.
Low insertion loss on the main line: e.g., at 5 MHz 0.9 dB typical, rising to 2.6 dB at 1218 MHz.
Isolation (min) between main line and tap ports: ~20 dB over broad frequency ranges.
Condition: New
Product Overview: The Antronix Milenium 16 dB directional coupler (model MGDCH‑2116F) is designed for high‑performance headend or trunk‑line applications in broadband HFC/CATV networks. Engineered for up to 1.2 GHz bandwidth, it is built to handle high‑current feed-through, provide excellent surge protection, and deliver minimal signal distortion when extracting a 16 dB tap from the main feed. Its robustness, durable housing, and plug‑in signal‑conditioning capability make it well suited for demanding network upgrades and future‑proofing architectures.
Features:
16 dB tap value, ensuring a balanced portion of the signal is extracted.
Frequency range (tap loss specs): 5‑750 MHz: 16 ±1 dB; 750‑1000 MHz: 16.4 ±1.2 dB; 1000‑1218 MHz: 16.6 ±1.5 dB.
Low insertion loss on the main line: e.g., at 5 MHz 0.9 dB typical, rising to 2.6 dB at 1218 MHz.
Isolation (min) between main line and tap ports: ~20 dB over broad frequency ranges.
