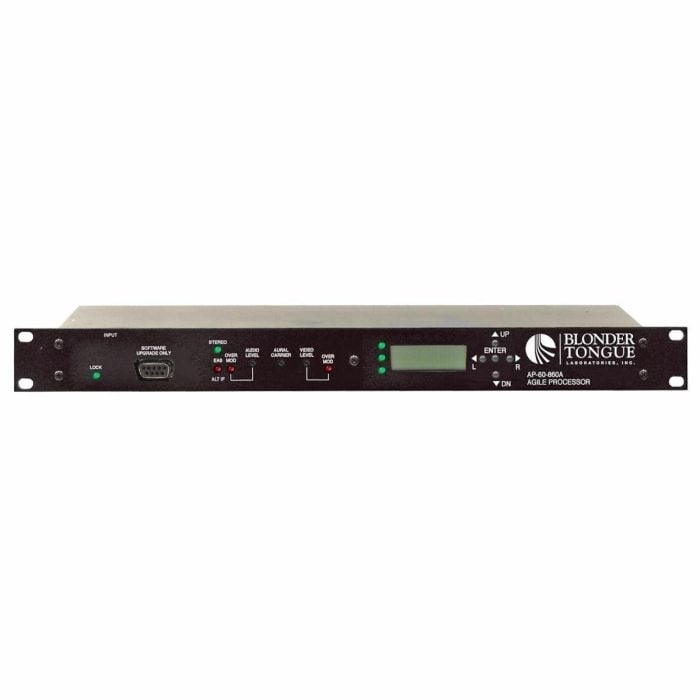

AP-60-860A Agile Digital/Analog Processor

Add to Wish List
Out of stock
SKU
59819-10
$2,594.00
The AP Series for years has been ideal for moving analog off-air channels or CATV channels to another channel assignment. Now, the addition of digital processing features makes the new AP-60-860A processor an extremly agile product. The AP-60-860A (Agile Digital/Analog Processor) operates in one of the three following modes: Mode 1: Analog Heterodyne Processor (Analog RF IN > Analog RF OUT) Mode 2: Digital Heterodyne Processor (QAM IN > QAM OUT) Mode 3: Digital-to-Analog Processor (8VSB or QAM IN > Analog RF OUT) Features: As an agile analog heterodyne processor: accepts one Analog RF input (CATV sub-band channels T7-T13, CATV standard channels 2-135, VHF channels 2-13, and UHF channels 14-69) and delivers one Analog RF output (CATV standard channels 2-135) As an agile digital heterodyne processor: accepts one Digital Cable QAM input (CATV sub-band channels T7-T13, and CATV standard channels 2-135) and delivers one Digital Cable QAM output (CATV standard channels 2-135) As an agile digital-to-analog processor: accepts one Digital Off-air 8VSB or Digital Cable QAM input (CATV standard channels 2-135, VHF channels 2-13, and UHF channels 14-69) and delivers one Analog RF output (CATV standard channels 2-135) Equipped with EAS interface which can also be used as an IF (Intermediate Frequency) input Supports Closed Captioning (EIA-608)   Product Documents & Videos Spec Sheet Click to Download User Manual Click to Download See More
The AP Series for years has been ideal for moving analog off-air channels or CATV channels to another channel assignment. Now, the addition of digital processing features makes the new AP-60-860A processor an extremly agile product. The AP-60-860A (Agile Digital/Analog Processor) operates in one of the three following modes: Mode 1: Analog Heterodyne Processor (Analog RF IN > Analog RF OUT) Mode 2: Digital Heterodyne Processor (QAM IN > QAM OUT) Mode 3: Digital-to-Analog Processor (8VSB or QAM IN > Analog RF OUT) Features: As an agile analog heterodyne processor: accepts one Analog RF input (CATV sub-band channels T7-T13, CATV standard channels 2-135, VHF channels 2-13, and UHF channels 14-69) and delivers one Analog RF output (CATV standard channels 2-135) As an agile digital heterodyne processor: accepts one Digital Cable QAM input (CATV sub-band channels T7-T13, and CATV standard channels 2-135) and delivers one Digital Cable QAM output (CATV standard channels 2-135) As an agile digital-to-analog processor: accepts one Digital Off-air 8VSB or Digital Cable QAM input (CATV standard channels 2-135, VHF channels 2-13, and UHF channels 14-69) and delivers one Analog RF output (CATV standard channels 2-135) Equipped with EAS interface which can also be used as an IF (Intermediate Frequency) input Supports Closed Captioning (EIA-608)   Product Documents & Videos Spec Sheet Click to Download User Manual Click to Download
