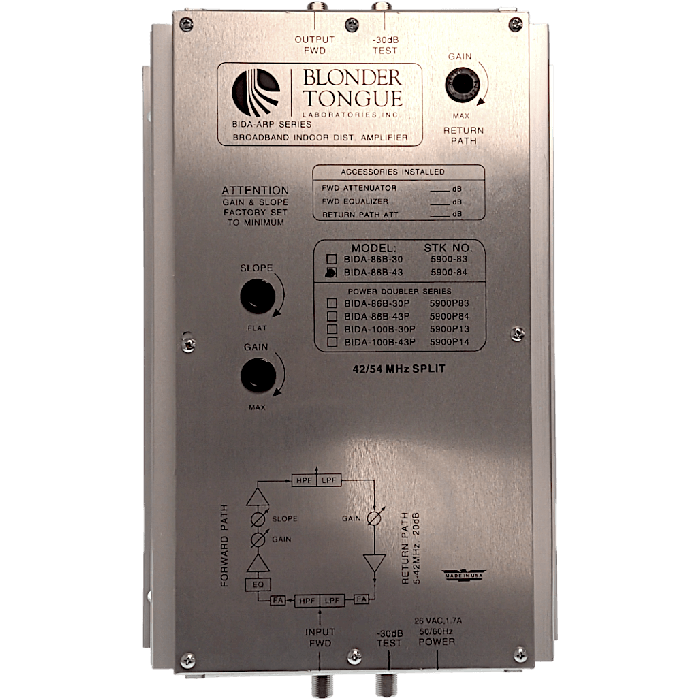

BIDA 86B-43 Broadband Indoor Distribution Amplifier

Condition: New

Product Overview:
The Blonder Tongue BIDA 86B-43 is a professional-grade broadband indoor RF distribution amplifier designed for CATV, MATV, and SMATV systems that require high signal gain for long cable runs and multi-outlet distribution. It provides 43 dB of forward gain across the 54-860 MHz forward frequency range and features a 5-42 MHz return path that can be configured for either passive or active operation via internal jumpers. Front-panel gain and slope controls allow precise system alignment, while integrated input and output test points enable convenient signal monitoring without interrupting service. Built with low-distortion hybrid circuitry and a large heat sink for efficient thermal dissipation, the BIDA 86B-43 is designed for reliable, continuous operation in demanding RF distribution environments.

Features:

• 43 dB forward gain for long cable runs and multi-drop RF distribution

• 54-860 MHz forward operating frequency range

• Configurable 5-42 MHz return path (passive or active via internal jumpers)

• Front-panel adjustable gain and slope controls

• Input and output back-matched (-30 dB) test points for signal monitoring

• Low-distortion push-pull hybrid amplifier circuitry

• Large heat sink for efficient thermal dissipation and reliable operation

• Supports CATV, MATV, and SMATV distribution systems

• Optional plug-in equalizer and attenuator compatibility for input signal conditioning

• External low-voltage AC power supply allows flexible installation and remote powering options
