Product Overview: The iWDM plan consists of 16 wavelengths in the C-band in the range of ITU 21 through ITU 62. While there are predefined offsets for some of the 16 wavelengths, the multiplexer and demultiplexer of optical signals can continue to be supported through standard ITU optical passives as the offsets are within the guard band of the passive - typically 0.12 nm.

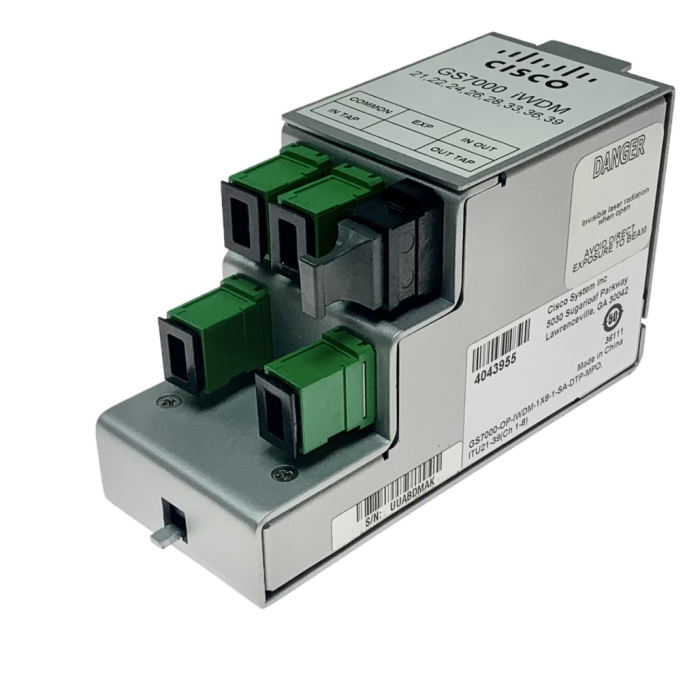

Cisco Prisma® interoperable multi-wavelength optics passives multiplexer and demultiplexer components (Figure 1) are essential when iWDM is implemented to increase network efficiency by significantly reducing fiber counts. Most units are available in the industry-recognized, LGX-compatible form factor to allow easy, snap-in mounting in a variety of enclosures and cabinets.
Features
● Cisco Prisma Interoperable multi wavelength multiplexer and demultiplexer modules (available in 4-, 8-, and 16-channel configurations)
● Channels spaced at 100 GHz, following the standard ITU wavelength grid
● Wavelength-mapping options that allow broadcast and narrowcast services to be combined on a single fiber
● Support for both analog and digital forward-path transmission applications, as well as reverse-path transmission applications, such as baseband digital reverse, to significantly increase bidirectional throughput
Condition: New
Product Overview: The iWDM plan consists of 16 wavelengths in the C-band in the range of ITU 21 through ITU 62. While there are predefined offsets for some of the 16 wavelengths, the multiplexer and demultiplexer of optical signals can continue to be supported through standard ITU optical passives as the offsets are within the guard band of the passive - typically 0.12 nm.
Cisco Prisma® interoperable multi-wavelength optics passives multiplexer and demultiplexer components (Figure 1) are essential when iWDM is implemented to increase network efficiency by significantly reducing fiber counts. Most units are available in the industry-recognized, LGX-compatible form factor to allow easy, snap-in mounting in a variety of enclosures and cabinets.
Features
● Cisco Prisma Interoperable multi wavelength multiplexer and demultiplexer modules (available in 4-, 8-, and 16-channel configurations)
● Channels spaced at 100 GHz, following the standard ITU wavelength grid
● Wavelength-mapping options that allow broadcast and narrowcast services to be combined on a single fiber
● Support for both analog and digital forward-path transmission applications, as well as reverse-path transmission applications, such as baseband digital reverse, to significantly increase bidirectional throughput
See More
Checkout now
Are you an Amazon customer? Pay now with address and payment details stored in your Amazon account.
Product Overview: The iWDM plan consists of 16 wavelengths in the C-band in the range of ITU 21 through ITU 62. While there are predefined offsets for some of the 16 wavelengths, the multiplexer and demultiplexer of optical signals can continue to be supported through standard ITU optical passives as the offsets are within the guard band of the passive - typically 0.12 nm.
Cisco Prisma® interoperable multi-wavelength optics passives multiplexer and demultiplexer components (Figure 1) are essential when iWDM is implemented to increase network efficiency by significantly reducing fiber counts. Most units are available in the industry-recognized, LGX-compatible form factor to allow easy, snap-in mounting in a variety of enclosures and cabinets.
Features
● Cisco Prisma Interoperable multi wavelength multiplexer and demultiplexer modules (available in 4-, 8-, and 16-channel configurations)
● Channels spaced at 100 GHz, following the standard ITU wavelength grid
● Wavelength-mapping options that allow broadcast and narrowcast services to be combined on a single fiber
● Support for both analog and digital forward-path transmission applications, as well as reverse-path transmission applications, such as baseband digital reverse, to significantly increase bidirectional throughput
