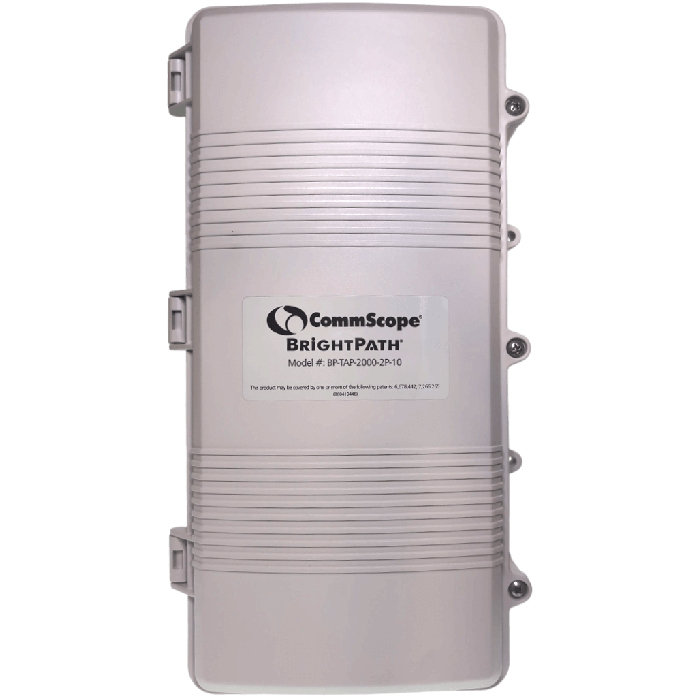

Commscope BP-TAP-2000-2P-10 10 Db RFOG Fiber Tap

Condition: New

Product Overview: The CommScope BP-TAP-2000-2P-10 is a hardened outdoor fiber optic enclosure equipped with a factory-installed 2-port passive optical tap rated at 10 dB tap loss. Designed for RF-over-Glass (RFOG) and fiber-to-the-home (FTTH) networks, this unit offers SC/APC connectorized ports and a built-in slack storage tray for clean and secure fiber management. Its robust housing supports outside plant installation, with eight small and two large bottom entry ports for versatile cable routing.

Features

• 10 dB Passive Optical Tap
  Integrated 2-port tap designed for medium-attenuation signal access; ideal for test access or low-impact monitoring while preserving mainline signal strength.

• SC/APC Connectorized Ports
  Factory-terminated connectors simplify installation while maintaining low insertion loss and excellent return loss across the 1260–1620 nm range.

• Internal Slack Management Tray
  Organizes and protects fiber slack within the enclosure, preventing damage and maintaining proper bend radius.

• Versatile Bottom Entry Panel
  Equipped with eight small and two large cable entry points, supporting multiple cable sizes and installation needs.
