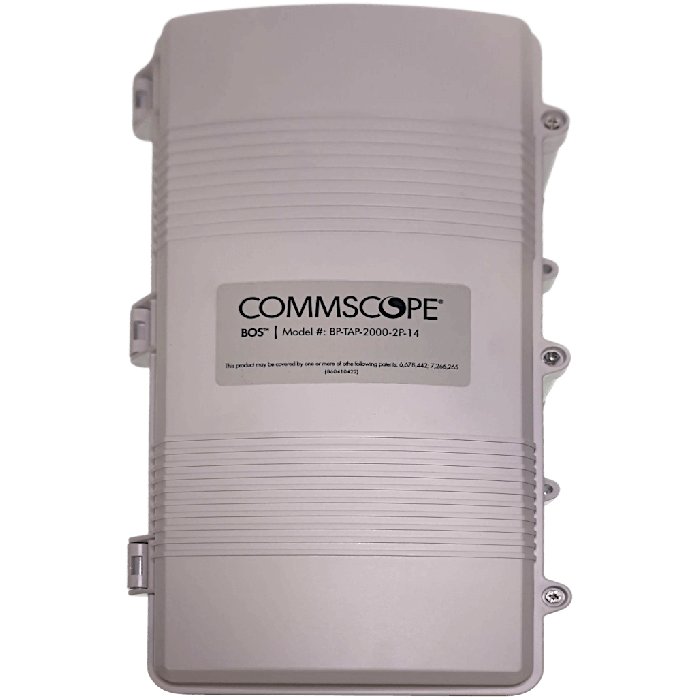

Commscope BP-TAP-2000-2P-14 14Db RFOG Fiber Tap

Condition: New

Product Overview: A sealed, hardened outdoor fiber enclosure engineered for RF‑over‑Glass (RFOG), FTTH monitoring, and test‐point functions. The unit houses a factory-installed 2‑port passive optical tap delivering approximately 14 dB tap loss, with SC/APC connectorized drop ports. Internal components include a dedicated fiber slack tray, while the bottom panel features multiple cable entry knockouts—typically eight small and two larger openings—to support diverse cable routing and drop configurations.

Features

• 14 dB Attenuation Optical Tap
  Factory-integrated 2‑port tap optimized to divert a precise, attenuated fraction of the upstream signal for monitoring with minimal disturbance to the main network.

• SC/APC Connectorized Ports
  Pre‑terminated with hardened SC/APC connectors across the standard 1260 – 1620 nm wavelength range, ensuring low insertion loss and high return loss.

• Integrated Slack Tray
  Internal fiber management tray secures slack and preserves bend radius compliance, enhancing deployment durability and ease of maintenance.
