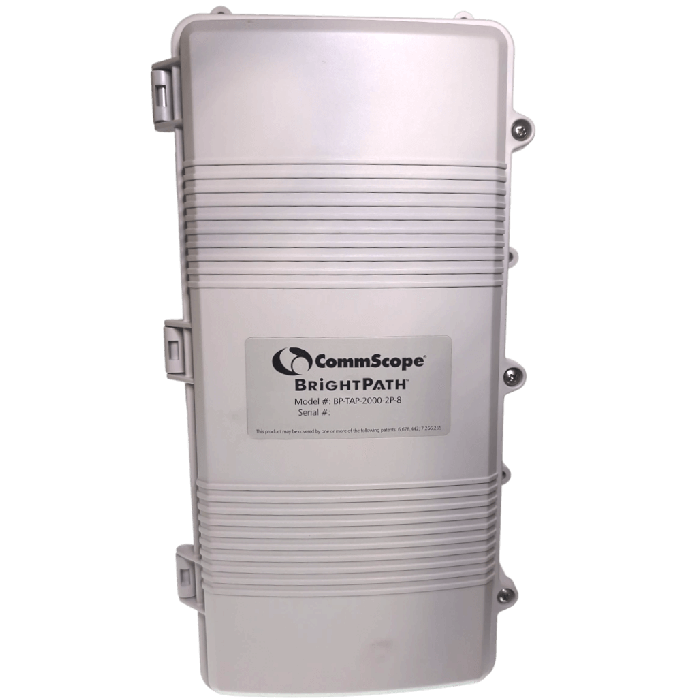

Commscope BP-TAP-2000-2P-8 8Db RFOG Fiber Tap

Condition: New

Product Overview: A hardened, weatherproof outdoor enclosure built for RF-over-Glass (RFOG), FTTH drop monitoring, and test point deployments. It features a factory-installed 2-port passive optical tap delivering approximately 8 dB tap loss, with SC/APC connectorized drop ports. Inside, there's a built-in fiber slack tray for neat internal fiber management. The enclosure includes multiple bottom cable entry options—typically eight small knockouts and two larger access points—for flexible routing and drop installations.

Features

• 8 dB Optical Tap Module
  Factory-integrated 2-port passive tap designed to divert a controlled portion of fiber signal for monitoring while maintaining strong downstream signal integrity.

• SC/APC Connectorized Outputs
  Pre-terminated SC/APC connectors across standard wavelengths (1260 – 1620 nm) for plug-and-play simplicity and superior optical performance.

• Internal Slack Management Tray
  Built-in tray secures slack and protects fiber inside the enclosure, reducing bend radius violations and fiber strain.

• Bottom Entry Knockouts
  Eight small and two large entry points accommodate diverse fiber cable diameters and routing needs in outdoor installations.
