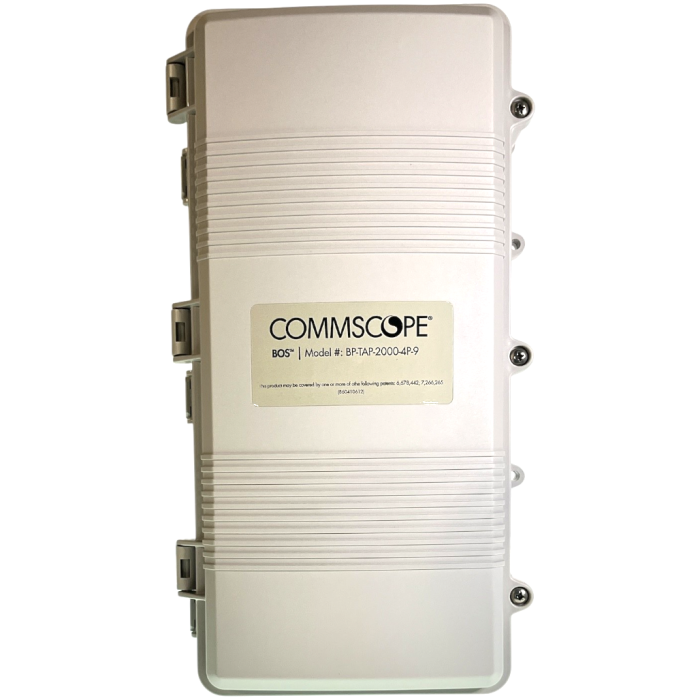

Commscope BP-TAP-2000-4P-9 9db White RFOG Fiber Tap

Condition: New

Product Overview: The CommScope BP-TAP-2000-4P-9 White is a weather-resistant fiber optic enclosure designed for RF-over-Glass (RFOG) and FTTH applications. It contains a factory-installed 4-port passive optical tap delivering 9 dB tap loss, equipped with SC/APC connectorized ports for reliable, low-loss connections. Inside, a fiber slack tray facilitates clean fiber management. The enclosure features multiple bottom cable entry points—eight small and two large—for flexible cable routing. The white rugged finish enhances outdoor visibility and aesthetic integration.

Features

• 9 dB Four-Port Passive Optical Tap
  Provides moderate attenuation across four ports for test access or monitoring applications.

• SC/APC Connectorized Ports
  Factory-installed connectors ensure low insertion loss and high return loss over the 1260–1620 nm spectrum.

• Integrated Fiber Slack Tray
  Keeps fiber slack neatly organized and protected, preventing damage from bending.

• Multiple Bottom Entry Ports
  Includes eight small and two large cable knockouts for flexible outdoor cable management.

• Durable White Outdoor Enclosure
  UV-resistant white finish enhances visibility and blends well in outdoor environments.
