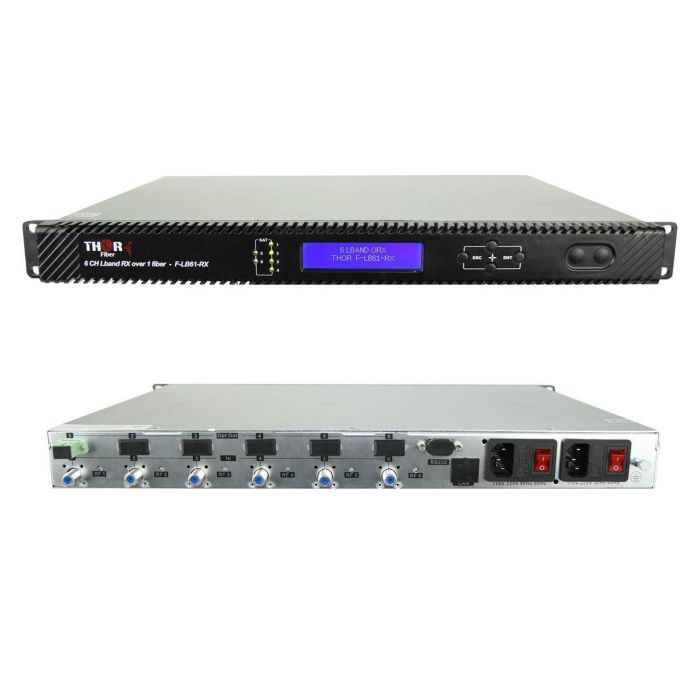

CWDM Optical Receiver for 6 L-Band RF channels over single fiber for MDU Modern Satellite TV systems such as DirecTV have multiple coax feeds from the dish for different polarities. These RF signals feed into a Single Wire Multiswitch, or SWiM system. Thor F-LB61-CWRX systems provide 6 L-Band RF outputs to drive the multiswitch. These signals are carried over a single fiber from a Thor F-LB61-CWTX transmitter system. These receivers are ideal for mid scale systems not large enough to require DWDM or EDFA amplifiers. Under most conditions, the optical signal from the transmitter can drive up to 32 F-LB61-CWRX receivers. For systems requiring more drops, multiple CWDM transmitters can be used, or a DWDM system with an EDFA can be implemented. These receivers have a very high sensitivity, allowing them to work under less than ideal link conditions. Functioning at optical power levels down to -12dBm allows F-LB61-DWRX receivers to work even with dirty fiber connectors or poor splices. Typical RF receiver sensitivities are around -7dBm, a sensitivity improvement of 5dB corresponds to almost 15km of Singlemode fiber @1310nm wavelengths. Thor F-LB61 transmitters and receivers can also be used with PLC splitters for multi point distribution. Thor offers free design and consultation service to help determine the best equipment configuration. Contact a sales representative for assistance. Features: 6x L-Band CWDM Recievers with optical filters Compact form factor for customer premise installation All optical passives built internally with 1 fiber in Compatible with all world satellite TV providers  Specifications: Optics Type: 6x CWDM 20 nm Frequency Range: 45-3000 MHz RF Power Output: -25 - +14 dBmV Optical Connector: SC/APC Optical Sensitivity: -9 dBm Power Consumption: < 25 W Operating Temp: 0 - 65 C Product Documents & Videos Spec Sheet Click to Download Data Sheet Click to Download Advanced LTTH Headend Design Diagram Click to Download Basic LTTH System Diagram Click to Download Redundant LTTH Rack Design Click to Download CWDM Optical Receiver for 6 L-Band RF channels over single fiber for MDU Modern Satellite TV systems such as DirecTV have multiple coax feeds from the dish for different polarities. These RF signals feed into a Single Wire Multiswitch, or SWiM system. Thor F-LB61-CWRX systems provide 6 L-Band RF outputs to drive the multiswitch. These signals are carried over a single fiber from a Thor F-LB61-CWTX transmitter system. These receivers are ideal for mid scale systems not large enough to require DWDM or EDFA amplifiers. Under most conditions, the optical signal from the transmitter can drive up to 32 F-LB61-CWRX receivers. For systems requiring more drops, multiple CWDM transmitters can be used, or a DWDM system with an EDFA can be implemented. These receivers have a very high sensitivity, allowing them to work under less than ideal link conditions. Functioning at optical power levels down to -12dBm allows F-LB61-DWRX receivers to work even with dirty fiber connectors or poor splices. Typical RF receiver sensitivities are around -7dBm, a sensitivity improvement of 5dB corresponds to almost 15km of Singlemode fiber @1310nm wavelengths. Thor F-LB61 transmitters and receivers can also be used with PLC splitters for multi point distribution. Thor offers free design and consultation service to help determine the best equipment configuration. Contact a sales representative for assistance. Features: 6x L-Band CWDM Recievers with optical filters Compact form factor for customer premise installation All optical passives built internally with 1 fiber in Compatible with all world satellite TV providers  Specifications: Optics Type: 6x CWDM 20 nm Frequency Range: 45-3000 MHz RF Power Output: -25 - +14 dBmV Optical Connector: SC/APC Optical Sensitivity: -9 dBm Power Consumption: < 25 W Operating Temp: 0 - 65 C Product Documents & Videos Spec Sheet Click to Download Data Sheet Click to Download Advanced LTTH Headend Design Diagram Click to Download Basic LTTH System Diagram Click to Download Redundant LTTH Rack Design Click to Download See More
