Eagle EQNF-23-D Filter QAM Notch Ch23
Condition: New

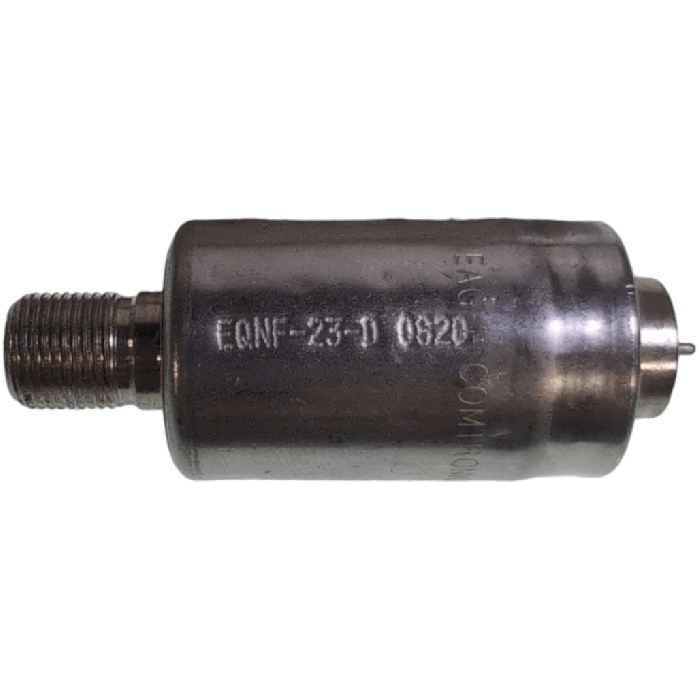

Product Overview: The Eagle EQNF-23-D is a specialized QAM notch filter designed to attenuate the digital QAM carrier on Channel 23 within a 75 Ω coaxial system. Utilizing Eagle Comtronics' proprietary phase-cancellation technology, this inline filter achieves a deep, narrow notch—typically around 45 dB attenuation—while maintaining a flat frequency response outside the isolated band. Its compact tubular design with F-type male/female connectors ensures easy integration into existing setups.
Features
Channel-Specific Notch for QAM 23
Precisely attenuates the Channel 23 digital QAM carrier (~45 dB notch depth), disrupting the ability of a receiver to tune this specific QAM carrier.Phase-Cancellation Design
Employs a narrow notch network utilizing phase cancellation, ensuring minimal impact on adjacent channels.Wide Frequency Passband
Maintains a reliable signal from 0.3 MHz to 1000 MHz, excluding the notched range.
Condition: New
Product Overview: The Eagle EQNF-23-D is a specialized QAM notch filter designed to attenuate the digital QAM carrier on Channel 23 within a 75 Ω coaxial system. Utilizing Eagle Comtronics' proprietary phase-cancellation technology, this inline filter achieves a deep, narrow notch—typically around 45 dB attenuation—while maintaining a flat frequency response outside the isolated band. Its compact tubular design with F-type male/female connectors ensures easy integration into existing setups.
Features
Channel-Specific Notch for QAM 23
Precisely attenuates the Channel 23 digital QAM carrier (~45 dB notch depth), disrupting the ability of a receiver to tune this specific QAM carrier.Phase-Cancellation Design
Employs a narrow notch network utilizing phase cancellation, ensuring minimal impact on adjacent channels.Wide Frequency Passband
Maintains a reliable signal from 0.3 MHz to 1000 MHz, excluding the notched range.
