FIS F1-9772 24-Port Connector Heat Cure Oven

Condition: Used, Out of Box, Like New

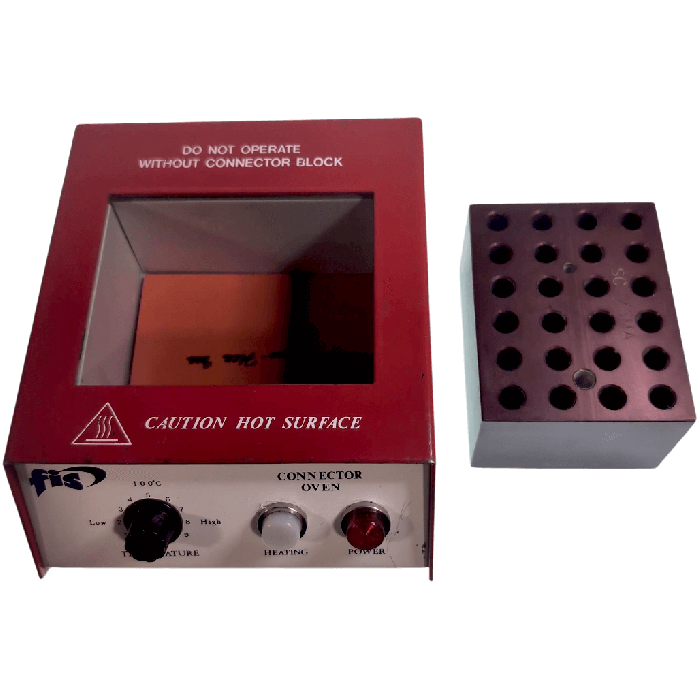

Product Overview: The FIS F1‑9772 24‑Port Connector Heat Cure Oven is a reliable, compact oven tailored for curing epoxy on fiber optic connectors. Designed for field or shop use, it supports 110 V AC and features a 24-position aluminum block that evenly heats standard connectors—ST, FC, SC, D4, SMA (with optional blocks for LC/MU/MPO). The front-panel thermostat and indicator lights ensure precise temperature control up to 160 °C, while a supplied thermometer allows for accurate monitoring. Lightweight and portable (3.8 lb), this oven is essential for preventing epoxy out-gassing and ensuring a clean, stable bond during splicing or connector termination.

Features

• 24-Position Universal Block
  Holds ST, FC, SC, D4, or SMA connectors; optional blocks available for LC, MU, and MTP.

• Precise Thermostat Control
  Adjustable from ambient up to 160 °C (±3 °C stability) with “Power” and “Heat” indicator LEDs.

• Portable & Durable Design
  Weighing just 3.8 lb (3.25″ H × 5.3″ W × 6.75″ D) with a six-foot power cord—ideal for field or lab use.

• Essential for Epoxy Cure Quality
  Prevents epoxy out-gassing and connector failure by maintaining proper cure temperature.
