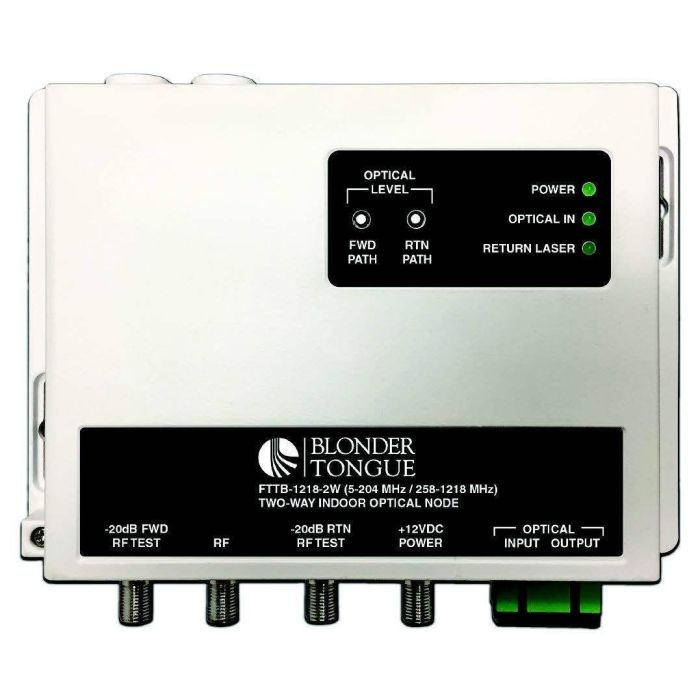

FTTB-1218-2W Two-Way Indoor Optical Node with DOCSIS 3.1 Support - Series Models: FTTB-1218-2W-85 (7630 85) - 85/105 MHz Split
Condition: New
PRODUCT OVERVIEW
The FTTB-1218-2W Series (Two-Way Indoor Optical Node) converts the optical signal received from the headend into a +36 dBmV RF output. The compact housing includes an optical receiver, RF AGC, RF amplifier, and return path optical transmitter. Three (3) frequency splits are available to satisfy standard 5-42 MHz, 5-85 MHz, or 5-204 MHz returns for increased return bandwidths required in DOCSIS 3.1 applications.
KEY FEATURES
1218 MHz forward RF bandwidth for DOCSIS 3.1 compatibility
Three (3) Frequency Splits available for all DOCSIS 3.1 applications
RF AGC Maintaining +36 dBmV Output with Optical Input Range from -4 to +3 dBm
High performance and low power consumption GaAs technology
1310 nm 3.0 dBm DFB return path transmitter
Die-cast aluminum housing for indoor installation
Tri-color LED indicating optical input status
Bi-color LED indicating return laser transmitter output status
Forward and Return -20 dB RF Test Ports (One Each)
Local/Remote 18 VDC powering from F-type connector
View moreCondition: New
PRODUCT OVERVIEW
The FTTB-1218-2W Series (Two-Way Indoor Optical Node) converts the optical signal received from the headend into a +36 dBmV RF output. The compact housing includes an optical receiver, RF AGC, RF amplifier, and return path optical transmitter. Three (3) frequency splits are available to satisfy standard 5-42 MHz, 5-85 MHz, or 5-204 MHz returns for increased return bandwidths required in DOCSIS 3.1 applications.
KEY FEATURES
1218 MHz forward RF bandwidth for DOCSIS 3.1 compatibility
Three (3) Frequency Splits available for all DOCSIS 3.1 applications
RF AGC Maintaining +36 dBmV Output with Optical Input Range from -4 to +3 dBm
High performance and low power consumption GaAs technology
1310 nm 3.0 dBm DFB return path transmitter
Die-cast aluminum housing for indoor installation
Tri-color LED indicating optical input status
Bi-color LED indicating return laser transmitter output status
Forward and Return -20 dB RF Test Ports (One Each)
Local/Remote 18 VDC powering from F-type connector
