FTTB-1218-L2W Two-Way Indoor Optical Node with DOCSIS 3.1 Support - Series Models: FTTB-1218-L2W-42 (7631 42) - 42/54 MHz Split

Condition: New

Product Overview

The FTTB-1218-L2W Series Two-Way Indoor Optical Node converts optical signals from the headend into a +44 dBmV RF output while simultaneously transmitting upstream cable-modem signals back to the headend over a dedicated return fiber. Designed to support modern DOCSIS 3.1 networks, the node offers multiple return-path frequency split options and a field-replaceable diplexer architecture, allowing operators to upgrade return bandwidth as network demands increase.

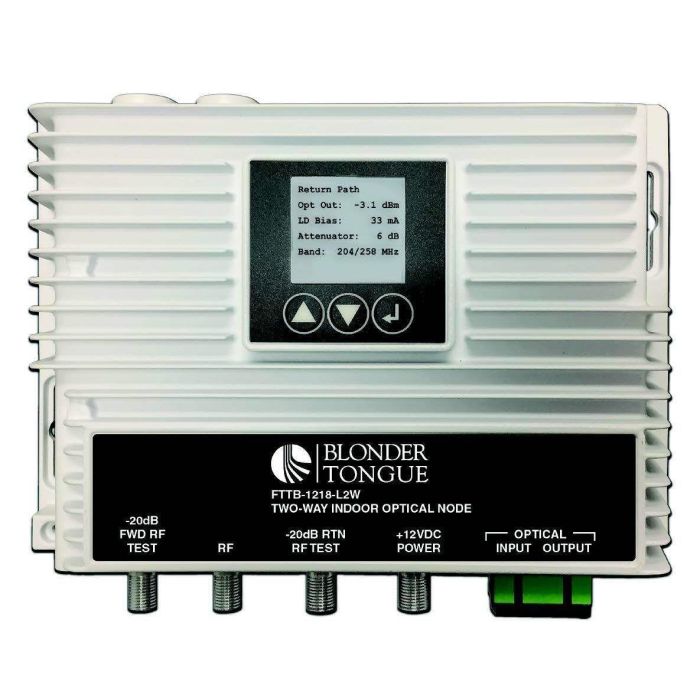

Housed in a compact aluminum die-cast enclosure for indoor installations, the FTTB-1218-L2W integrates an optical receiver with LCD status display, RF AGC, adjustable attenuation and slope controls, RF amplification, and a high-performance return-path optical transmitter. This makes it well-suited for FTTB, MDU, enterprise, and indoor broadband distribution environments.

Key Features

• Two-Way Indoor Optical Node for forward and return RF transmission

• DOCSIS 3.1 Ready with selectable return-path frequency splits

• Model FTTB-1218-L2W-42: 42/54 MHz frequency split

• 1218 MHz Forward RF Bandwidth for extended spectrum applications

• RF AGC maintains a stable +44 dBmV RF output level

• Field-Replaceable RF Diplexers for future return-bandwidth upgrades

• User-Friendly LCD Interface with three-button navigation for configuration

• 1310 nm DFB Return Path Transmitter with 3.0 dBm optical output

• Low Power Consumption GaAs Technology

• Forward and Return -20 dB RF Test Ports for monitoring and maintenance

• 18 VDC “F” Connector Input for local or remote powering
