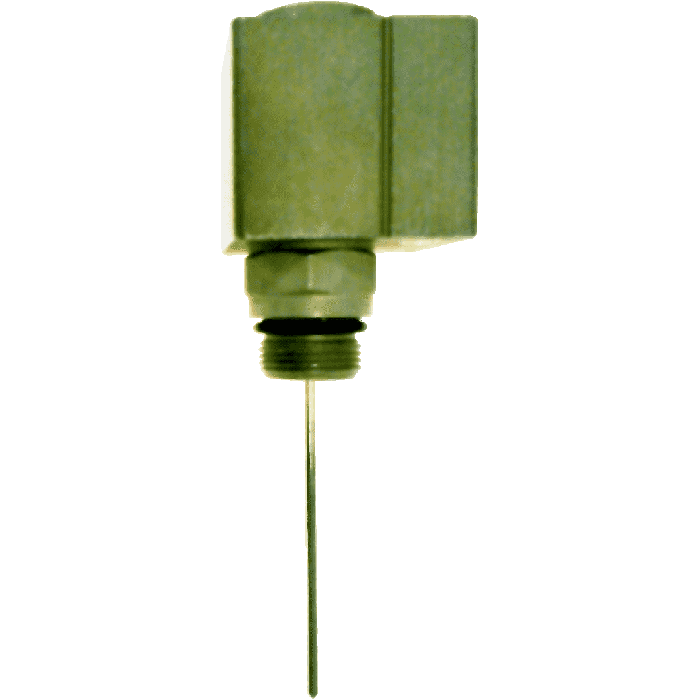

Gilbert GL-90-SC-T 90-Degree Connector

Condition: New

Product Description: Our pin connector boasts a precision-engineered beryllium copper socket contact, accommodating pin diameters ranging from .065 to .075 inches (1.65 to 1.90 mm). The bright acid tin-plated brass pin ensures superior conductivity. With an AC power rating of 15 amps continuous, it offers robust power handling capabilities. Moreover, its remarkable return loss of >30 dB at 1 GHz guarantees top-notch signal quality. Our KS male and KS female ports meet SCTE interface practice standards, making it a reliable choice for your connectivity needs.

Features:

• Beryllium copper socket contact design accepts pin diameter from .065 to .075 in. [1.65 to 1.90 mm]

• Bright acid tin plated brass pin

• AC power rating: 15 amps continuous

• Return loss: >30 dB at 1 GHz

• KS male and KS female ports meet SCTE interface practice standards

• Beryllium copper socket contact design accepts pin diameter from .065 to .075 in. [1.65 to 1.90 mm]

• Bright acid tin plated brass pin

• AC power rating: 15 amps continuous

• Return loss: >30 dB at 1 GHz

• KS male and KS female ports meet SCTE interface practice standards
