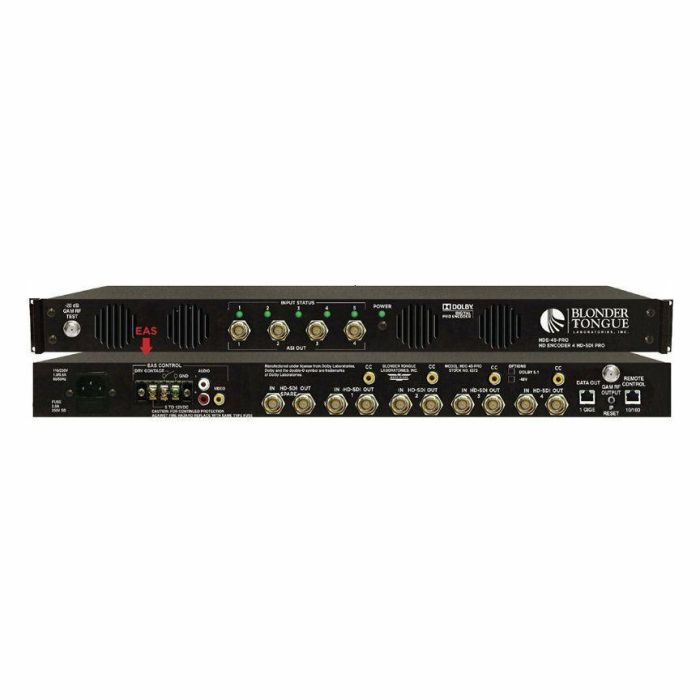

HDE-4S-PRO - High Definition Encoder - 4 Programs w/48 VDC

Add to Wish List
Out of stock
SKU
6372 48-10
$9,318.67
  DISCONTINUED   HDE-4S-PRO - High Definition Encoder - 4 Programs w/48 VDC HDE-4S-PRO (MPEG-2 HD Encoder: 4xHD-SDI + 1xSpare to 4xQAM + 4xIP) is the first generation in Professional MPEG-2 Encoder Series, especially designed to deliver superior motion optimization for programming such as fast-paced live sporting events. The unit accepts up to four (4) high-definition (HD) programs from: 4xHD-SDI. MPEG-2 encoded outputs are available in the following formats simultaneously: 4xQAM, 4xIP (1000Base-T Ethernet), and 4xASI. To improve transport efficiency, the encoder allows operator to (i) assign one (1) to four (4) programs to each QAM output channel, and (ii) to individually turn on/off each of the four (4) adjacent QAM output channels. The encoder supports Dolby® Digital and Closed Captioning (EIA-608 and EIA-708). It is also equipped with an Emergency Alert System (EAS) interface. A front-panel RF test point allows for monitoring/testing of the QAM output without service interruption. Comprehensive remote monitoring and control is accomplished using any standard Web browser via a front-panel 10/100BaseT Ethernet connection.LOW LATENCY OPTION AVAILABLE FOR ULTRA-LIVE ACTION  Accepts up to four (4) programs: 4xHD-SDI Supports HD-SDI input loop thru for monitoring Simultaneously delivers the following outputs: 4xQAM (Adjacent), 4xIP (SPTS), and 4xASI Multiplexes up to four (4) input programs in any of the following output combinations: 1:1 (1 program per QAM channel) 2:1 (2 programs per QAM channel, not exceeding 38.8Mbps) Each of the four (4) QAM channels can (i) contain 1 or 2 programs, and (ii) be turned on/off individually Provides 40 dBmV QAM output level for four (4) combined channels Provides comprehensive GUI-based monitoring and control via standard Web browsers Supports Closed Captioning EIA-608 and EIA-708 Equipped with EAS interface (Analog Video + L/R Audio) Supports Real-time Dolby® Digital audio encoding Supports user-defined PSIP configuration For Ultra-Live Action, choose models with the Low Latency Option in the related products section below. Other configurations of the HDE-4S-PRO Encoder can be found there as well.  Product Documents & Videos Spec Sheet Click to Download Presentation Click to Download See More
