HDE-HVC-PRO Professional Series MPEG-2 HD/SD Encoder

Add to Wish List
Out of stock
SKU
6364 PRO
$3,175.00

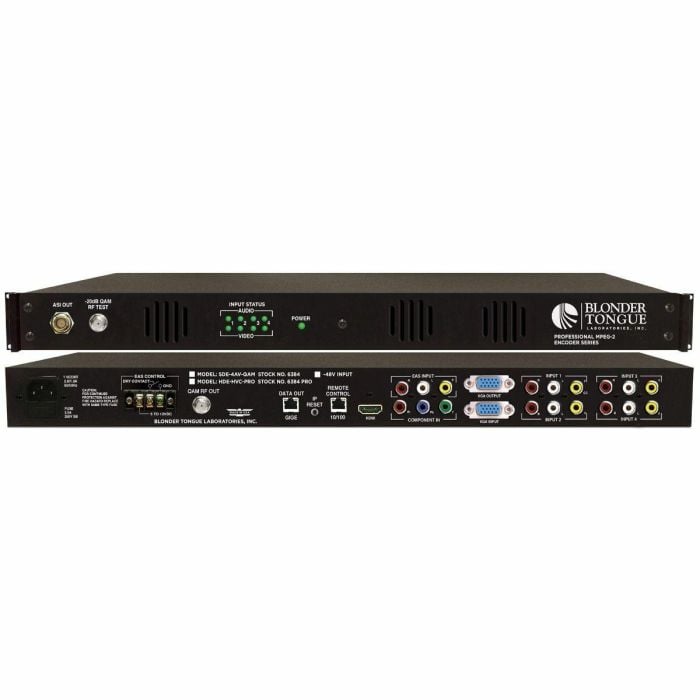

  HDE-HVC-PRO (Professional Series MPEG-2 HD/SD Encoder) is especially designed to deliver superior motion optimization for programming such as fast-paced live sporting events and is configurable in either HD or SD mode via its web interface. When operating in HD Mode, the encoder accepts one (1) program from any one of the following inputs: 1xHDMI (unencrypted),1xVGA or 1xComponent. In SD Mode the encoder accepts up to four (4) standard-definition (SD) input programs in NTSC baseband Audio/Video format. Each input program is digitized and MPEG-2 encoded, and the outputs (in either HD or SD Mode) are available in the following formats simultaneously: 1xQAM, 1xASI, and IP (GigE; HD 1xSPTS; SD 1xMPTS + 4xSPTS). The encoder supports Dolby® Digital audio encoding, and Closed Captioning (EIA-608). It is also equipped with an Emergency Alert System (EAS) interface, accepting NTSC video and baseband L/R audio for EAS signal inputs. A front-panel RF test point allows for monitoring/testing of the QAM output without service interruption. Comprehensive remote monitoring and control is accomplished using any standard Web browser via a rear-panel 10/100Base-T Ethernet connection. HD Mode: Accepts one (1) program from any of the following inputs: 1xHDMI (unencrypted), 1xVGA, 1xComponent, and 1xComposite SD Mode: Accepts up to four (4) programs in NTSC baseband A/V format Simultaneously delivers the following outputs: 1xQAM, 1xASI, and IP (GigE; HD 1xSPTS; SD 1xMPTS + 4xSPTS) Provides comprehensive GUI-based monitoring and control via standard Web browsers Provides a front-panel RF test point (at 20 dB below primary QAM output) Configurable to ITU-T J.83 Annex A and B digital QAM formats Equipped with EAS interface (Analog Video + L/R Audio) Supports Real-time Dolby® Digital audio encoding Supports Closed Captioning EIA-608 Supports user-defined PSIP configuration Additional InformationSpec SheetProduct Presentation See More
  HDE-HVC-PRO (Professional Series MPEG-2 HD/SD Encoder) is especially designed to deliver superior motion optimization for programming such as fast-paced live sporting events and is configurable in either HD or SD mode via its web interface. When operating in HD Mode, the encoder accepts one (1) program from any one of the following inputs: 1xHDMI (unencrypted),1xVGA or 1xComponent. In SD Mode the encoder accepts up to four (4) standard-definition (SD) input programs in NTSC baseband Audio/Video format. Each input program is digitized and MPEG-2 encoded, and the outputs (in either HD or SD Mode) are available in the following formats simultaneously: 1xQAM, 1xASI, and IP (GigE; HD 1xSPTS; SD 1xMPTS + 4xSPTS). The encoder supports Dolby® Digital audio encoding, and Closed Captioning (EIA-608). It is also equipped with an Emergency Alert System (EAS) interface, accepting NTSC video and baseband L/R audio for EAS signal inputs. A front-panel RF test point allows for monitoring/testing of the QAM output without service interruption. Comprehensive remote monitoring and control is accomplished using any standard Web browser via a rear-panel 10/100Base-T Ethernet connection. HD Mode: Accepts one (1) program from any of the following inputs: 1xHDMI (unencrypted), 1xVGA, 1xComponent, and 1xComposite SD Mode: Accepts up to four (4) programs in NTSC baseband A/V format Simultaneously delivers the following outputs: 1xQAM, 1xASI, and IP (GigE; HD 1xSPTS; SD 1xMPTS + 4xSPTS) Provides comprehensive GUI-based monitoring and control via standard Web browsers Provides a front-panel RF test point (at 20 dB below primary QAM output) Configurable to ITU-T J.83 Annex A and B digital QAM formats Equipped with EAS interface (Analog Video + L/R Audio) Supports Real-time Dolby® Digital audio encoding Supports Closed Captioning EIA-608 Supports user-defined PSIP configuration Additional InformationSpec SheetProduct Presentation
