• 1 GHz BANDWIDTH • SUPERIOR HUM MODULATION PERFORMANCE
• MINIMAL INSERTION LOSS
• 15 AMPERES • BACKWARD COMPATIBLE
• ROTATABLE FACEPLATE
• SWIVEL CENTER SEIZURE MECHANISM PRODUCTS
INTRODUCTION

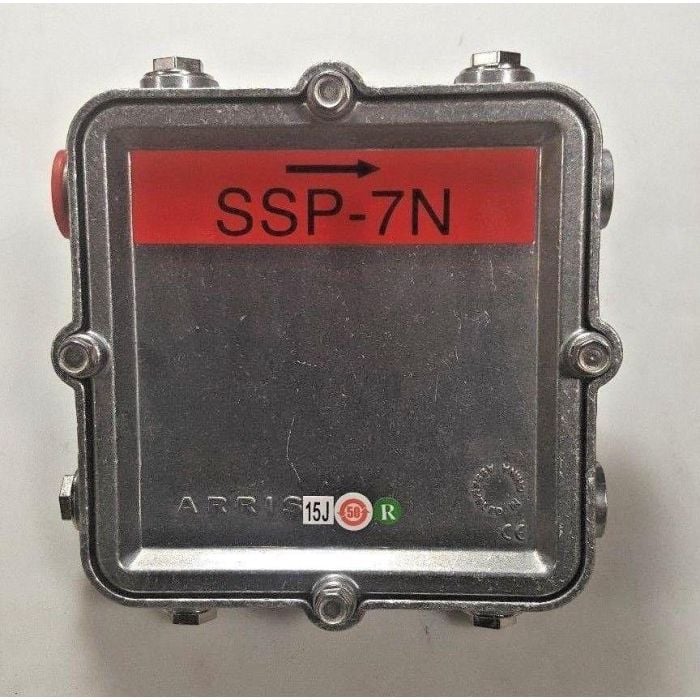

There are six models in the Motorola SSP-N series of splitters and directional couplers: SSP-3N, SSP-7N, SSP-9N, SSP-12N, SSP-16N, and SSP-3-636N. These AC power-passing, two-way devices operate within an RF passband of 1 GHz and are enclosed in die cast 360 aluminum alloy housings that are equipped for strand and pedestal mounting. The SSP-N series employs a swivel center conductor seizure mechanism and a rotatable faceplate to ensure that the units can be configured in a variety of input/output and RF/AC combinations. This allows for flexible installation and reduces the need for cable loops. The SSP-N series is equipped with shorting bars to reduce nuisance fuse blowing. These shorting bars can be removed for power blocking or replaced with fuses at the user's option. SSP-N SERIES POWER INSERTER Model SSP-PIN is a network for combining RF with AC power from the system power supplies to coaxial cable. The unit can be used for 60 and 90 volt powered systems. It installs on coaxial cable and passes up to 15 amperes in each direction - a total of 20 amperes common. The SSP-PIN/SP has the same performance as the standard SSP-PIN product, but adds additional surge protection capability. This product has been designed to improve overall system reliability. 15 AMPERE CAPABILITY Today’s advanced HFC networks require additional current handling for centralized powering and network powering of telephony devices. To meet this demand all Motorola SSP-N passives pass 15 amperes. The SSP-N models are capable of handling 15 amperes continuous on each leg. The SSP-PIN power inserter can also handle 15 amperes on each leg, 20 amperes common. These N-Series passives can also withstand 25 amperes for two hours at 65 degrees Celsius. All Motorola passives offer superior hum modulation performance, even at high currents.
BACKWARD COMPATIBILITY All Motorola SSP-K and SSP-N models are backward compatible to all existing Jerrold/General Instrument SSP housings. Upgrades can be accomplished by replacing the faceplate.
FEATURES
• 1 GHz BANDWIDTH • SUPERIOR HUM MODULATION PERFORMANCE
• MINIMAL INSERTION LOSS
• 15 AMPERES • BACKWARD COMPATIBLE
• ROTATABLE FACEPLATE
• SWIVEL CENTER SEIZURE MECHANISM PRODUCTS
INTRODUCTION
There are six models in the Motorola SSP-N series of splitters and directional couplers: SSP-3N, SSP-7N, SSP-9N, SSP-12N, SSP-16N, and SSP-3-636N. These AC power-passing, two-way devices operate within an RF passband of 1 GHz and are enclosed in die cast 360 aluminum alloy housings that are equipped for strand and pedestal mounting. The SSP-N series employs a swivel center conductor seizure mechanism and a rotatable faceplate to ensure that the units can be configured in a variety of input/output and RF/AC combinations. This allows for flexible installation and reduces the need for cable loops. The SSP-N series is equipped with shorting bars to reduce nuisance fuse blowing. These shorting bars can be removed for power blocking or replaced with fuses at the user's option. SSP-N SERIES POWER INSERTER Model SSP-PIN is a network for combining RF with AC power from the system power supplies to coaxial cable. The unit can be used for 60 and 90 volt powered systems. It installs on coaxial cable and passes up to 15 amperes in each direction - a total of 20 amperes common. The SSP-PIN/SP has the same performance as the standard SSP-PIN product, but adds additional surge protection capability. This product has been designed to improve overall system reliability. 15 AMPERE CAPABILITY Today’s advanced HFC networks require additional current handling for centralized powering and network powering of telephony devices. To meet this demand all Motorola SSP-N passives pass 15 amperes. The SSP-N models are capable of handling 15 amperes continuous on each leg. The SSP-PIN power inserter can also handle 15 amperes on each leg, 20 amperes common. These N-Series passives can also withstand 25 amperes for two hours at 65 degrees Celsius. All Motorola passives offer superior hum modulation performance, even at high currents.
BACKWARD COMPATIBILITY All Motorola SSP-K and SSP-N models are backward compatible to all existing Jerrold/General Instrument SSP housings. Upgrades can be accomplished by replacing the faceplate.
