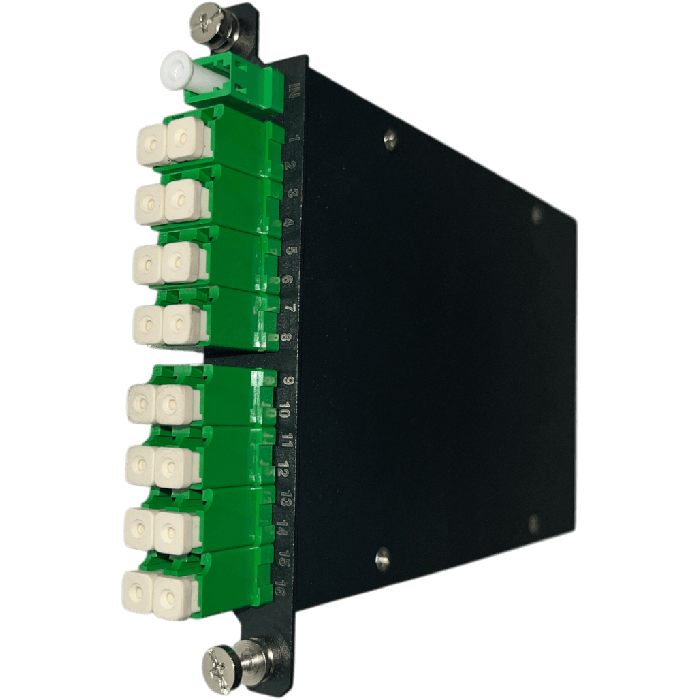

Opti Works 1077574 16 Channel Fiber Splitter

Contition: New

Product Overview: The OptiWorks 1077574 is a passive 1 × 16 PLC (Planar Lightwave Circuit) splitter that divides one input optical signal into 16 identical outputs for PON, FTTH, data-center, and test‐system applications . It’s optimized for single‐mode (OS2, 9/125 µm) fiber and housed in a compact, LGX‐compatible module using thin‐film/quartz waveguide technology to ensure uniform power distribution and temperature stability . Front-panel SC/APC adapters minimize back reflections and ensure repeatable, low‐loss mating. No external power is required, making it ideal for high-reliability installations where passive, maintenance-free operation is paramount .

Features

• 1 × 16 Split Ratio
  One input to sixteen outputs for high‐density signal branching

• Single-Mode OS2 Compatibility
  Supports 9/125 µm fiber for long-reach, low-dispersion links

• Low Insertion Loss (< 1.5 dB Typical)
  Ensures minimal signal attenuation across all channels

• High Return Loss (≥ 50 dB)
  Sharp channel isolation and low back-reflection for signal integrity
