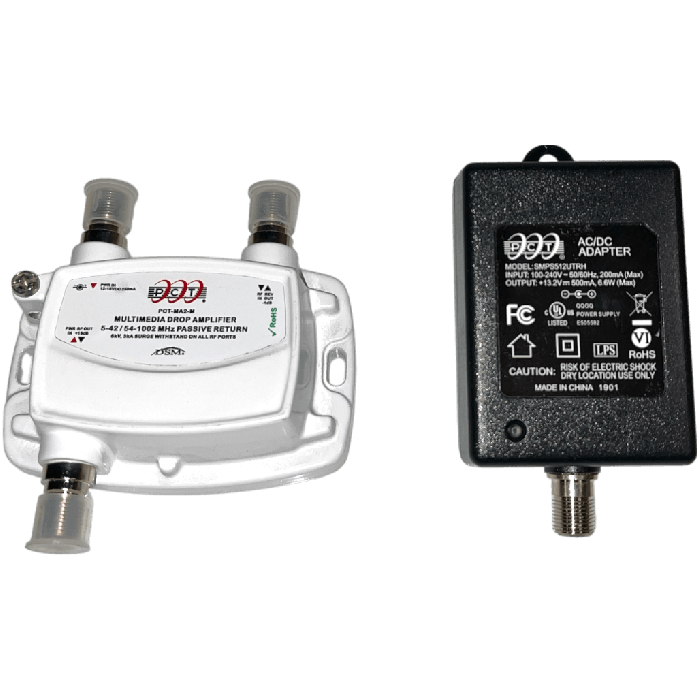

PCT PCT-MA2-M1 Drop Amplifier
Condition: New
Product Overview: The PCT PCT‑MA2‑M1 (often referred to as PCT‑MA2‑M) is a compact, single-output drop amplifier designed to enhance RF signal strength in DOCSIS and RFoG networks. Housed in a rugged, weather-sealed enclosure with precision-machined F‑ports and a patented center conductor retainer, it offers robust performance for residential or small multi-dwelling unit installations. With low insertion loss and IEEE B3 surge protection on all ports, it is ideal for installations needing a power boost right at the drop.
Features:
15 dB forward gain on the single output with passive return path (5–42 MHz)
Wide RF bandwidth (54–1002 MHz) with ≥ 18 dB return loss and ≥ 110 dB shielding effectiveness
Compact form factor — only ~3.6″ × 3.5″ for space-constrained NIDs or enclosures
Rugged build with surge protection — sealed housing, IEEE B3 6 kV surge withstand, and DSM F‑port retention
Condition: New
Product Overview: The PCT PCT‑MA2‑M1 (often referred to as PCT‑MA2‑M) is a compact, single-output drop amplifier designed to enhance RF signal strength in DOCSIS and RFoG networks. Housed in a rugged, weather-sealed enclosure with precision-machined F‑ports and a patented center conductor retainer, it offers robust performance for residential or small multi-dwelling unit installations. With low insertion loss and IEEE B3 surge protection on all ports, it is ideal for installations needing a power boost right at the drop.
Features:
15 dB forward gain on the single output with passive return path (5–42 MHz)
Wide RF bandwidth (54–1002 MHz) with ≥ 18 dB return loss and ≥ 110 dB shielding effectiveness
Compact form factor — only ~3.6″ × 3.5″ for space-constrained NIDs or enclosures
Rugged build with surge protection — sealed housing, IEEE B3 6 kV surge withstand, and DSM F‑port retention
