PDMUX 2 Channel Mux IP Streamer
$3,915.00
Out of stock
SKU
PDMUX
Description

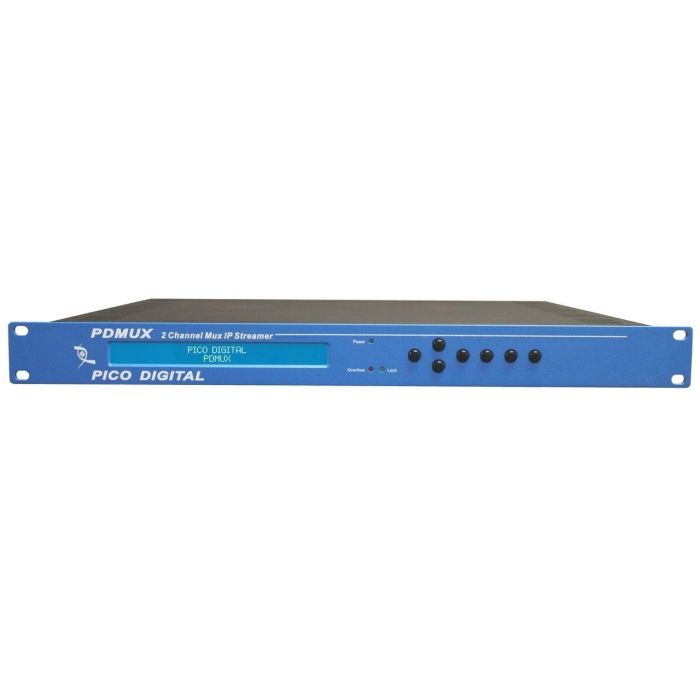

PDMUX: 2 CHANNEL MUX IP STREAMER The PDMUX multiplexer is a professional TS processor used in digital TV broadcasting headend systems like CONDOR. It receives up to 512 IP (SPTS/MPTS) channels and multiplexes the input programs into two TS stream outputs. For easy management, the PDMUX can be controlled and upgraded via a Web server in addition to the front panel keyboard. Its high integration and cost effective design have made it widely used in CATV broadcasting systems. 512 IP (SPTS/MPTS) inputs over UDP Two independent groups of ASI outputs (each group has two ports) Two IP outputs over UDP PCR re-stamping Supports PID passthrough, re-mapping, and multiplexes up to 2048 PIDs per out channel Supports PSI/SI re-building and editing Greater than two Mbyte input buffer Full front panel control SNMP control supported Fully compliant with ISO13818 and EN300 468 standards Product Documents & Videos Spec Sheet Click to Download View more
PDMUX: 2 CHANNEL MUX IP STREAMER The PDMUX multiplexer is a professional TS processor used in digital TV broadcasting headend systems like CONDOR. It receives up to 512 IP (SPTS/MPTS) channels and multiplexes the input programs into two TS stream outputs. For easy management, the PDMUX can be controlled and upgraded via a Web server in addition to the front panel keyboard. Its high integration and cost effective design have made it widely used in CATV broadcasting systems. 512 IP (SPTS/MPTS) inputs over UDP Two independent groups of ASI outputs (each group has two ports) Two IP outputs over UDP PCR re-stamping Supports PID passthrough, re-mapping, and multiplexes up to 2048 PIDs per out channel Supports PSI/SI re-building and editing Greater than two Mbyte input buffer Full front panel control SNMP control supported Fully compliant with ISO13818 and EN300 468 standards Product Documents & Videos Spec Sheet Click to Download
