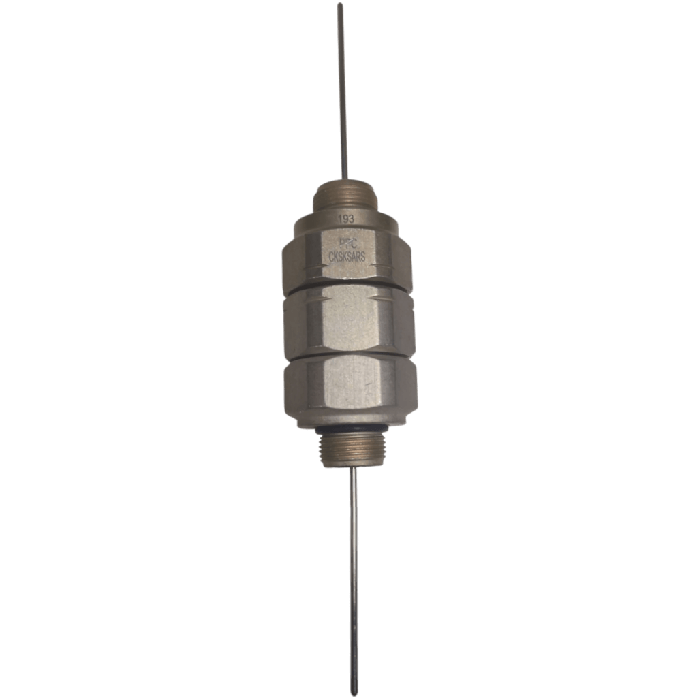

PPC CKSKSARS Housing to Housing Male Splice Adapter

Condition: New
Product Overview: The CKSKSARS is a rugged, weather-sealed, anti-rotational male adapter designed to directly connect two PPC housing ports without using cable—ideal for cascading taps or vault installations. Rated for frequencies up to 1 GHz, it maintains consistent RF performance and environmental resilience in outside-plant setups.

Features

• Housing-to-housing splice — eliminates the need for jumper cable when connecting tap housings in series

• Frequency rated 0–1 GHz with 75 Ω impedance for broadband RF networks

• Fully weather-sealed entry pins — ensures no moisture ingress and maintains RF integrity

• Anti-rotational design — maintains alignment and torque consistency during installation

• Electrical Ratings:

  • Insertion loss: <0.1 dB at 1 GHz

  • Return loss: ≥ 30 dB up to ~1.2 GHz
